InfiniProbe C-Mount

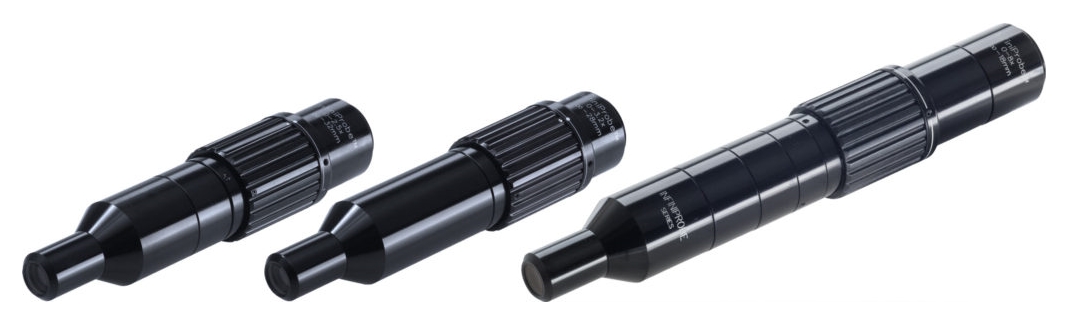

InfiniProbe™ C-Mount Series

Video Microscopes

InfiniProbe C-Mount
VIDEO MICROSCOPES

Suggested List Prices
Effective: December 01, 2022

Any questions on products and pricing please contact Infinity

• For all C-mount cameras/sensors to 2/3-in. format.
• Focuses from infinity to 32, 28, 24, and 18mm (respectively).
• Primary on-sensor 0-2.5x, 0-3.2x, 0-5x, and 0-8x.
• As compact as 151mm.

The InfiniProbes: There is only one other continuously-focusable video microscope that has greater capabilities than any of these superlative imaging systems: Infinity’s own InfiniVar CFM-2/S. Nevertheless, within their price-performance envelopes, the InfiniProbe Series optics have no equals.

All InfiniProbes are compact, popularly-priced answers to many imaging problems that only
continuously-focusable microscopes can solve. Now, these capabilities are available in truly entry-level products!

Focus anywhere from infinity on down and see detail and resolution grow as the magnification
continuously increases! You can monitor magnification, field of view and depth of field to get the exact image you want—by focusing from the most pleasing vantage point. Then, specific details may be zeroed-in at truly microscopical magnifications. By simply adding a 2x DL or LDL (lockable on to the camera) doubler, magnification can be amplified by a 2x factor.

Standard Main Bodies

*System magnifications listed below are based on using ½-in. format cameras with 13-in. monitors. All system magnifications can be doubled. All InfiniProbes can be used with camera formats up to and including those with 2/3-in. sensors.

ImageSKUNamePriceBuy
490100InfiniProbe S-25 (0-2.5x; Infinity to 32mm WD; *0-100x)$2,030.00
490102InfiniProbe S-32 (0-3.2x; Infinity to 28mm WD; *0-128x)$2,275.00
490106InfiniProbe S-80 (0-8.0x; Infinity to 18mm WD; *0-320x)$3,020.00

90-Degree Main Bodies

*System magnifications listed below are based on using ½-in. format cameras with 13-in. monitors. All system magnifications can be doubled. All InfiniProbes can be used with camera formats up to and including those with 2/3-in. sensors.

ImageSKUNamePriceBuy
490110InfiniProbe N-25 (0-2.5x; Infinity to 32mm WD; *0-100x)$2,540.00
490112InfiniProbe N-32 (0-3.2x; Infinity to 28mm WD; *0-128x)$2,780.00
490116InfiniProbe N-80 (0-8.0x; Infinity to 18mm WD; *0-320x)$3,510.00

Amplifiers

ImageSKUNamePriceBuy
690568DL Tube/2x (video only)$240.00
220568LDL Tube/2x (lockable for camera orientation)$340.00

Clamps

ImageSKUNamePriceBuy
860200Delrin Spacer. (Used with Large Mounting Clamp to Step-up from C-size Tube to T-size Tube)$40.00
770170Large Mounting Clamp$105.00
770171Mounting Bar$105.00
990170Small Mounting Clamp (useful to secure around objective section)$105.00

Prices and specifications are FOB Centennial, CO and are subject to change without notice.
InfiniProbe and InfiniVar are trademarks of INFINITY PHOTO-OPTICAL COMPANY.
U.S. Patent 5,054,896. Additional U.S. and foreign patents pending or may apply.
