Achrovid

Achrovid™

VIDEO MICROSCOPE OBJECTIVES

Achrovid™
Video-Dedicated Microscope Objectives

Suggested List Prices
Effective: December 01, 2022

Any questions on products and pricing please contact Infinity

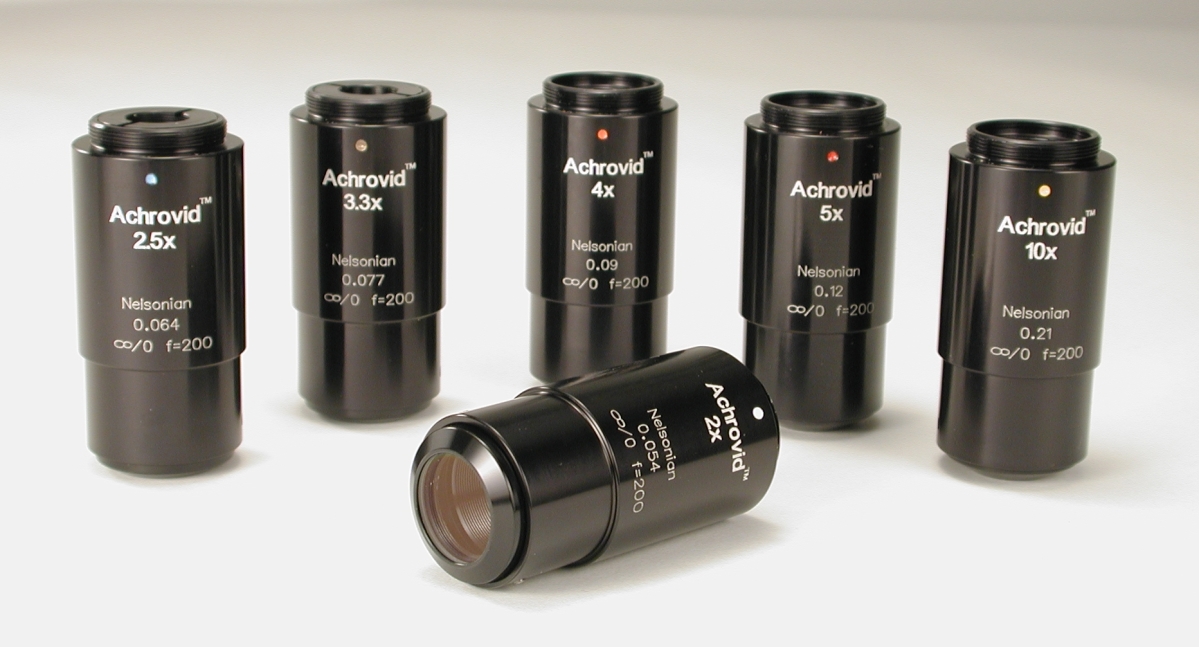

The Achrovid Series is presently comprised of six long working distance microscope objectives which have been specifically designed for use with video sensors. Maximized for optimum Nelsonian™ contrast/resolution in video applications, Achrovid Objectives represent a significant improvement in high magnification video imaging. An intermediary lens system with 200mm focal length must be utilized with these infinity-corrected objectives (e.g., Infinity’s InfiniTube™, Model KC™, Model K2™ or Model K1™).

Achrovid Objectives are mounted in “M” Thread (26mm/Whitworth). Each Achrovid has a 30mm diameter front. This feature allows our #990171 Small Mounting Clamp to be used as an extra point for attachment.

Achrovid Objectives (infinity-corrected/f=200mm)

ImageSKUNamePriceBuy
Achrovid 2x/Nelsonian 0.054/ W.D. 37mm
210301Achrovid 2x/Nelsonian® 0.054/ W.D. 37mm$495.00
Achrovid 2.5x/Nelsonian 0.064/ W.D. 37mm
210302Achrovid 2.5x/Nelsonian® 0.064/ W.D. 37mm$495.00
Achrovid 3.3x/Nelsonian 0.077/ W.D. 37mm
210303Achrovid 3.3x/Nelsonian® 0.077/ W.D. 37mm$495.00
Achrovid 4x/Nelsonian 0.09/ W.D. 37mm
210304Achrovid 4x/Nelsonian® 0.09/ W.D. 37mm$495.00
Achrovid 5x/Nelsonian 0.12/ W.D. 37mm
210305Achrovid 5x/Nelsonian® 0.12/ W.D. 37mm$495.00
Achrovid 10x/Nelsonian 0.21/ W.D. 17.50mm
210306Achrovid 10x/Nelsonian® 0.21/ W.D. 17.50mm$595.00
Achrovid 10x/High Resolution 0.28/ W.D. 17.30mm
210307Achrovid 10x/High Resolution 0.28/ W.D. 17.30mm$730.00
Small Mounting Clamp
990170Small Mounting Clamp (useful to secure around objective section)$105.00

Prices and specifications are FOB Centennial, CO and are subject to change without notice.
Achrovid and Nelsonian are trademarks of INFINITY PHOTO-OPTICAL COMPANY.
